The AMIKO IMPULSE 3 is a high-performance digital satellite receiver designed for seamless entertainment. With advanced features, affordable pricing, and consistent firmware updates, it has gained immense popularity among users. If you’re looking for the latest AMIKO IMPULSE 3 firmware, this guide will walk you through its benefits, installation process, and troubleshooting tips.
Keeping your firmware updated is crucial for maintaining device security, optimizing performance, and unlocking new features. Whether you’re searching for the AMIKO IMPULSE 3 manual, AMIKO IMPULSE 3 price, or simply an in-depth look at its latest firmware release, this article has got you covered.
Table of Contents
Table of Contents

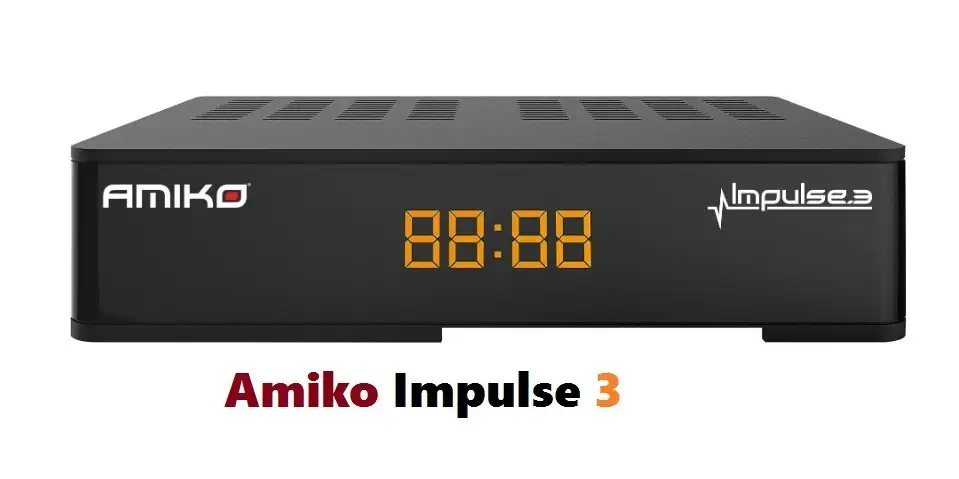

What is AMIKO IMPULSE 3?
The AMIKO IMPULSE 3 is a compact and budget-friendly satellite receiver known for its versatility and user-friendly interface. It supports a range of digital formats and provides an immersive viewing experience.
Key Features:
- Timeshift support
- Channel Recording & Timeshifting Simultaneously (optional)
- Channel switching time less than 1 second
- True-color, User Friendly On-Screen Display (OSD)
- Full Picture In Graphic (PIG) function
- Electronic Program Guide (EPG) for on-screen channel information
- Subtitle supported
- Teletext supported by VBI insertion and software emulation
- Parental lock facility by channel and program event
- Program and Channel information transfer from receiver to receiver
- Exciting games embedded
- Multi-Language support
- Power Consumption in Stand-By: <0.5W
- Tuner Type: DVB-T2 / DVB-C
- Frequency Range: 48~862MHz
- RF Input Level: -80dBm to -20dBm
- Antenna power output: DC 5V at max 75mA, Overload protection
- Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
- Input Symbol Rate: 1.0 ~ 7.0Ms/s
- Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
- Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
- Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6
System Resources
- Main Processor: 333 MHz
- Flash Memory: Serial Flash 8MB x 1
- DDR RAM: DDRIII 1333 16bit 1Gbit
MPEG TS A/V Decoding
- Transport Stream: MPEG-2, H.265
- Input Rate: Max.120Mbit/s
- Aspect Ratio: 4:3, 16:9, Letter Box
- Video Decoding: MPEG-4/H.265 SP@L3 to ASP@L5, AVC, HP@level 4.1, MP@level 4.1
- Video Resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p
- Audio Decoding: MPEG-1/2,AAC-LC,HE-AAC,MP3,Dolby Digital plus
- Audio Mode: Left / Right / Stereo/ Mono
- Sampling Rate: 32, 44.1 and 48KHz
- Power Supply
- Input Voltage: 5V DC
- Power Consumption: 18W Max
- Stand-By Power Consumption: <0.5W
- LAN: 10/100M RJ-45 Ethernet Connection
A/V & Data Input/Output
- SCART: CVBS Video out / Audio L/R out
- USB: One USB 2.0 slot
- S/PDIF: Coaxial
- Digital Video Output
- IR Port: Internal & Jack Type
Physical Specifications
- Size: 144mm*40mm*110mm
- Net Weight: 0.25KG
- Operation Temperature: 0°C~+45°C
- Storage Temperature: -10°C~+70°C
- Storage Humidity: 5%~95% RH (Non-Condensing)
| Specifications | |
| Brand: Model: | AMIKO AMIKO IMPULSE 3 |
Hardware Specifications:
| Hardware | Specifications: |
| Processor: | High-performance chipset |
| Box Type | Digital Full HD |
| Flash Size: | 8 MB |
| Connectivity: | Various ports, including USB, HDMI, Ethernet |
| Display: | User-friendly display |
| Remote Control: | Included |
Software Information:
| Software | Information |
| Software Type: | Updated Files (Firmware and Software) |
| File Format: | abs |
| Resolution: | Supports Full HD |
| Multi-Language Support: | Available |
| Parental Control: | Included |
Download AMIKO IMPULSE 3 Latesat Firmware Update
| File Name: | Download : |
| AMIKO_Impluse3_T2C_1.0.38_conax.rar | Download |
| AMIKO_Impluse3_T2C_1.0.33_conax.rar | Download |
| AMIKO_Impluse3_T2C_1.0.31_conax.rar | Download |
| AMIKO_Impluse3_T2C_1.0.30_conax.rar | Download |
Importance of AMIKO IMPULSE Firmware Updates
Firmware updates are critical for the optimal functioning of any digital receiver. The AMIKO IMPULSE 3 firmware ensures the device remains bug-free, secure, and compatible with new broadcasting standards.
Benefits of Updating Firmware:
- Performance Enhancements – Faster channel switching, and improved UI responsiveness.
- Security Fixes – Protection against potential vulnerabilities.
- New Features – Additional streaming options, bug fixes, and UI improvements.
- Compatibility Updates – Ensures smooth operation with the latest broadcasting technologies.
How to Check Your Firmware Version
To determine whether your AMIKO IMPULSE 3 needs an update:
- Navigate to Menu > System Information.
- Look for the current firmware version.
- Compare it with the latest available version on the official website.
How to Update AMIKO IMPULSE 3 Firmware
Updating your AMIKO IMPULSE 3 receiver is a straightforward process. Follow these steps to install the latest firmware:
Step 1: Download the Latest Firmware
- Visit the official AMIKO website or a trusted source to download the latest AMIKO IMPULSE 3 firmware.
- Ensure you download the correct version to prevent compatibility issues.
Step 2: Prepare a USB Drive
- Use a FAT32-formatted USB drive with at least 1GB free space.
- Copy the downloaded firmware file to the root directory of the USB drive.
Step 3: Install the Firmware
- Insert the USB drive into the AMIKO IMPULSE 3 USB port.
- Navigate to Menu > Software Update > USB Update.
- Select the firmware file and press OK.
- Follow the on-screen instructions to complete the update.
Step 4: Reboot & Verify
- Once the update completes, the device will restart automatically.
- Check the firmware version under System Information to ensure the update was successful.
Troubleshooting AMIKO IMPULSE 3 Firmware Issues
Sometimes, firmware updates may not go as planned. Here are some common issues and their solutions:
1. Device Not Recognizing USB Drive
- Ensure the USB is formatted as FAT32.
- Try using a different USB port.
- Use a different USB drive if the issue persists.
2. Firmware Installation Failure
- Make sure the downloaded firmware is correct and not corrupted.
- Perform a factory reset before updating.
3. Device Stuck on Boot Logo
- Reinstall the firmware using the recovery mode.
- Contact AMIKO customer support if the problem persists.
4. Loss of Channels After Update
- Perform a channel rescan from the settings menu.
- If needed, restore a backup of your previous channel list.
AMIKO IMPULSE 3 Price & Where to Buy
The AMIKO IMPULSE 3 price varies depending on the region and retailer. On average, you can expect to pay between $40 to $70 USD.
Where to Buy:
- Official AMIKO Website – Guarantees genuine products.
- Online Marketplaces – Amazon, eBay, and AliExpress.
- Local Electronics Stores – Check nearby retailers for availability.
AMIKO IMPULSE 3 Manual: User Guide
If you’re new to the AMIKO IMPULSE 3, the official AMIKO IMPULSE 3 manual is an essential resource. It includes:
- Device Setup Instructions
- Channel Scanning Process
- Recording and Playback Features
- Network & IPTV Setup
- Troubleshooting Tips
Where to Download the Manual?
- Available on the official AMIKO website.
- Some online forums and user communities also share PDF versions.
